Graphene Molecular Sieves for Desalination and Purification

Single or double layers of graphene can be precisely perforated to create molecular sieves with numerous applications from desalination to purification of water and gases and isolation of macromolecules Dr. Mae-Wan Ho

Faster cheaper desalination

Defence contractor Lockheed Martin promises to revolutionize the process of desalination to get fresh water from seawater by filtering away the salt [1]. It will release a prototype of a membrane filter Perforene consisting of a single layer of graphene with selective molecular holes that will let only let water through under pressure, leaving the salt behind. The graphene membrane is much thinner than current filters, yet just as strong, if not more so; and requires a lot less energy to do the job. This could make a real difference to 780 million people in the world now living without access to fresh water.

So, what is the basis of the filtration process? It is simply graphene sheets with precisely controlled pore sizes.

The idea was first proposed in June 2012 by researchers at Massachusetts Institute of Technology (MIT) in the United States [2, 3] who carried out a molecular dynamics computer simulation.

Graphene Molecular Sieve

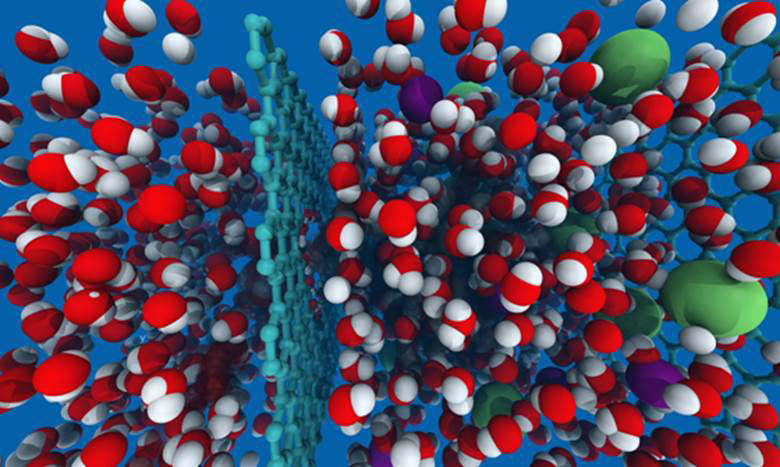

Figure 1    Artist’s impression of the desalination process with seawater containing sodium and chlorine ions (green and purple) on the right of the graphene film and only water molecules (red and white) on the left

One common current method of desalination is reverse osmosis, which uses membranes to filter the salt from water. These membranes are thick – about a thousand times the thickness of graphene - and require extremely high pressures. Still, it is the most energy efficient technique to date, with a record of 1.8 kWh/m3 achieved in a commercial plant in 2011 compared to about ~5 kWh/ m3 in the 1990s. Thermal desalination methods involving distillations are several times more energy-intensive [4]. Despite the widespread availability of seawater, desalination can only become a sustainable option if dramatically new techniques become available.

 In their model, Jeffrey Grossman and graduate student David Cohen-Tanugi made precisely sized holes in the graphene sheet and also added chemical groups to the edges to interact with water molecules that either repel or attract them to see how the filtration process would work. Their results showed that water can flow across a graphene membrane at rates of 10 – 100 L/cm2/day at a pressure of 1 MPa (~10 atmospheres), and still reject all salt ions. This is 2 to 3 orders of magnitude higher than reverse osmosis. They also showed that for a given pore size, water permeability is significantly enhanced by hydroxyl groups alternating with hydrogen lining the pores compared with pores lined only by hydrogen. Pore diameter is critical, for pore diameter > 5.5 Å, the majority of salt ions approaching the pore entrance would be able to pass through the membrane. However, pressure is also important. For a perfectly rejecting membrane which excludes salt entirely, the operating pressure does not affect the exclusion. The results showed that salt rejection is close to 100 % for the smallest hydrogenated and hydroxylated pore, as well as for medium hydrogenated pore. For the remaining pores that shows some salt exclusion, the selectivity decreases both with pore size and applied pressure.

Will the actual graphene membrane work as predicted?  Is it easy to reliably make graphene membranes that are large enough and strong enough?

Graphene is the strongest, and most stable material known. The single porous layer could be supported mechanically on a rigid porous layer to keep it from flexing or buckling, and there are techniques for making holes reliably and precisely in the membrane.

Crafting molecular sieves from graphene

A research team led by Jeong Won Park at Telecommunications Research Institute, Kaist, in Korea, used a remarkably simple technique to reliably create a molecular sieve that separated a mixture of haemoglobin and immunoglobulin proteins in 10 minutes [4].

The technique relies on diblock copolymer lithography, which has been used for templating periodic arrays of holes on a molecular scale since the 1990s [5].  Block copolymers are made up of blocks of different polymerized monomers. The copolymer used is PS-b-PMMA, polystyrene-b-poly (methylmethacrylate), made by first polymerizing styrene, and then polymerizing MMA from the reactive end of the polystyrene chains. It is referred to as a diblock copolymer because it contains two different chemical blocks. The copolymer is first evenly spread on a supported layer of graphene by spin coating. The layer formed acts as a mask for reactive ion etching lithography, which takes advantage of the different chemical susceptibility of the blocks to remove one of them leaving the other standing before the etching reagents is applied.  In this way they created a remarkable array of regularly space 15 nm holes in the graphene layer (Figure 2).

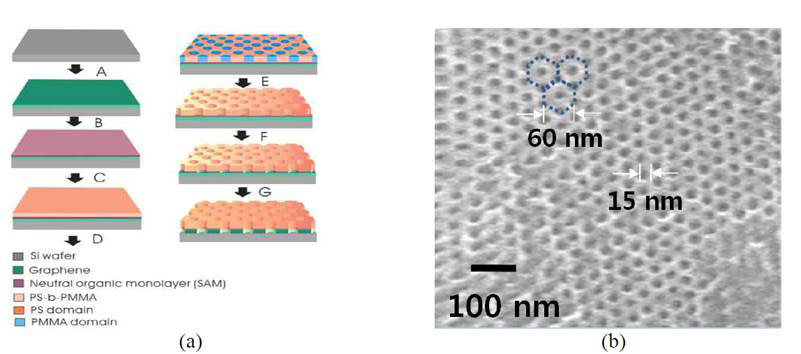

Figure 2  Di-block copolymer lithography for making molecular sieves (see text)

The three to four layer graphene molecular sieve was transferred to a SiN membrane with one micrometre-wide micropores that acted as support for the graphene membrane, and a separation test was carried out on the mixture of haemoglobin and IgG, each labelled with different fluorescent beads, at a concentration of 100 mg/mL each. The two proteins were separated in 10 minutes.

The authors concluded [6]: “Since the fabrication of the graphene nanosieves is so simple and easy to use and the separation of proteins works reasonably, the method can be applicable to the various medical devices, a fuel cell, and water purification.”

Molecular sieves for gases

A research team at University of Colorado, Boulder, used ultraviolet-induced oxidative etching on a bilayer of graphene to create subnanometre holes that are highly selective for different gas molecules. They were not able to detect the holes directly under the atomic force microscope possibly because the density of the holes is quite low. However, they were able to test the selective permeability of different membranes using molecules of known sizes. Thus, one membrane allowed H2 and CO2 to leak through in several minutes, but not Ar (argon) N2, CH4 (methane) and SF6 (sulphur hexafluoride). As the kinetic diameter cutoff in the membrane is that of Ar (3.4 Å), the membrane has a nominal sieving kinetic diameter of 3.4 Å. In another membrane, all the gases leaked through in seconds except for SF6, which did not leak through at all; consequently, that membrane has a nominal sieving kinetic diameter of SF6, which is 4.9 Å.

Interestingly, UV-induced oxidative etching is just about the only thing that destroys graphene, making it lose its conductive and other electronic properties [7]. But this degraded graphene can still be used as molecular sieves.

Article first published 31/07/13



References

  1. “Lockheed’s better, faster way to desalinate water”, Rachel Fellman, Popular Mechanics 14 March 2013, http://www.popularmechanics.com/how-to/blog/lockheeds-better-faster-way-to-desalinate-water-15216615
  2. “A new approach to water desalination”, MIT news, 2July 2012, http://web.mit.edu/newsoffice/2012/graphene-water-desalination-0702.html
  3. Cohen-Tanugi D and Grossman JC. Water desalination across nanoporous graphene. NanoLetters 2012, 12, 3600-8.
  4. Lee D-S, Park SH, Han Y-D, Park JW, Yung Y, Kim SP, Yoon HC and Choi SY. Graphene nanosieve using block copolymer lithography and its application to separation of haemoglobin protein and immunoglobulin G. In 16th International Conference, Miniaturized Systems for Chemistry and Life Sciences, 28 October – 1 November 2012, Okinawa.
  5. Park M, Harrison C, Chaikin PM, Register RA and Adamson DH. Block copolymer lithography: periodic arrays of ~1011 holes in 1 square centimetre. Science 1997, 276, 1401-4.
  6. Koenig SP, Wang L, Pellegrino J and Bunch JS. Selective molecular sieving through porous graphene. Nature nanotechnology 2012, 7, 728-32.
  7. Zhao S, Surwde SP, Li Zl, and Liu H. Photochemical oxidation of CVD-grwon single layer graphene. Nanotechnology 2012, 23, 355703 (6pp).
